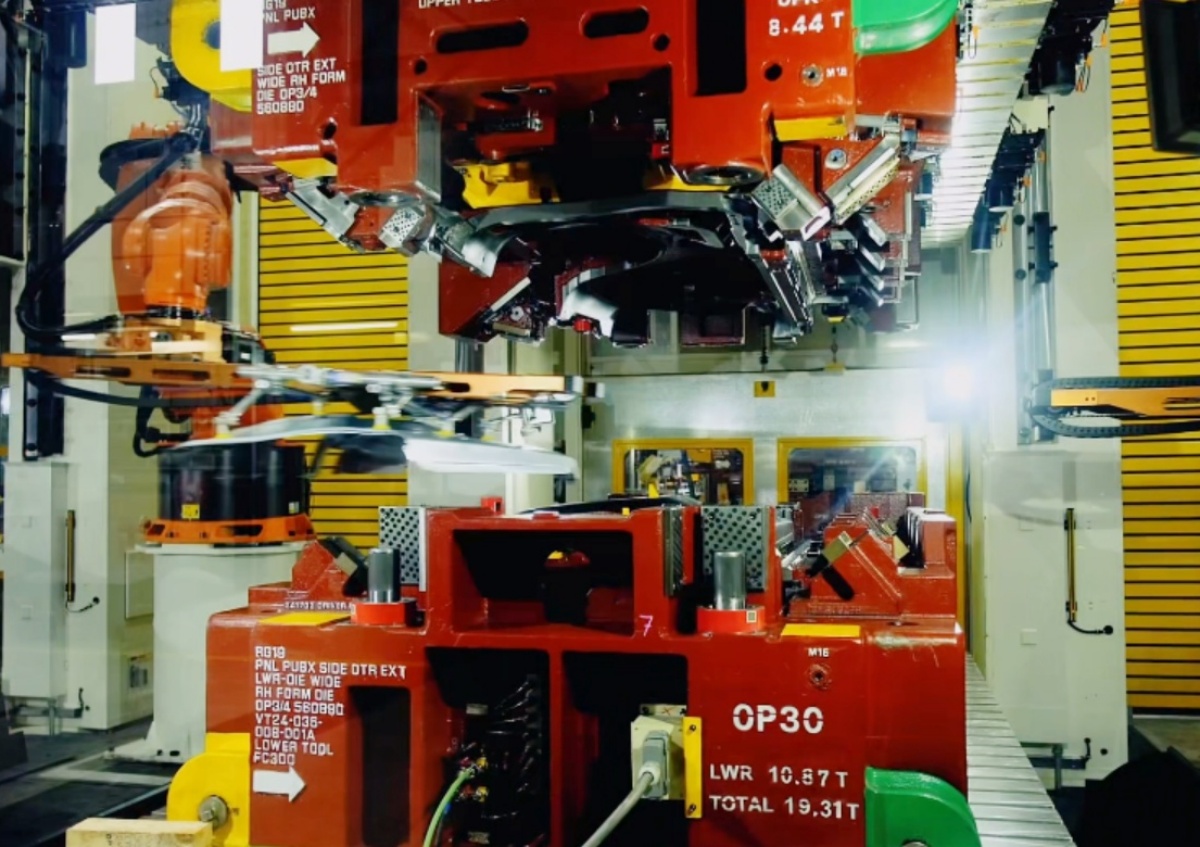

Multi-station (three-dimensional)
● Positioning of transfer automation is cartesian system, 3 motions, clamp/unclamp, up/down, feed/reverse are fulfilled by linear drive module. It uses pneumatic quick change device, servo motor driven, step response is fast, repetitive positioning error is small。
● FOL destacker consists of loading cart, magnetic fanner, destacker, conveyor and centering mechanism. Destacker is controlled by 2-axis servo motors, X-axis travels horizontally and Z-axis vertically.
● Positioning of transfer automation is cartesian system, 3 motions, clamp/unclamp, up/down, feed/reverse are fulfilled by linear drive module. It uses pneumatic quick change device, servo motor driven, step response is fast, repetitive positioning error is small。
● FOL destacker consists of loading cart, magnetic fanner, destacker, conveyor and centering mechanism. Destacker is controlled by 2-axis servo motors, X-axis travels horizontally and Z-axis vertically.
Universal tooling is provided with double blank detection. Conveyor stops when blank is in position, corresponding servo pushers position the blank, feeder picks up the part, pusher resets.
● Middle of line is 3-axis feeder, 2-arm transfer servo feeding system puts the blank from blanking station /first station to next station of the die.
● EOL, the part is moved by crossbar until last operation and put on exit conveyor. Then the part is checked and packed manually.
|
X-axis travel |
0-1500 |
mm |
|
Y-axis travel |
0-1000 |
mm |
|
Z-axis travel |
0-300 |
mm |
|
Repeated positioning accuracy |
±0.2 |
mm |
|
Automatic change of end pickup/ATC |
Standard configuration |
|
|
Max.out put |
30 |
spm |
Universal tooling is provided with double blank detection. Conveyor stops when blank is in position, corresponding servo pushers position the blank, feeder picks up the part, pusher resets.
● Middle of line is 3-axis feeder, 2-arm transfer servo feeding system puts the blank from blanking station /first station to next station of the die.
● EOL, the part is moved by crossbar until last operation and put on exit conveyor. Then the part is checked and packed manually.
|
X-axis travel |
0-1500 |
mm |
|
Y-axis travel |
0-1000 |
mm |
|
Z-axis travel |
0-300 |
mm |
|
Repeated positioning accuracy |
±0.2 |
mm |
|
Automatic change of end pickup/ATC |
Standard configuration |
|
|
Max.out put |
30 |
spm |
